Power Conditioing System

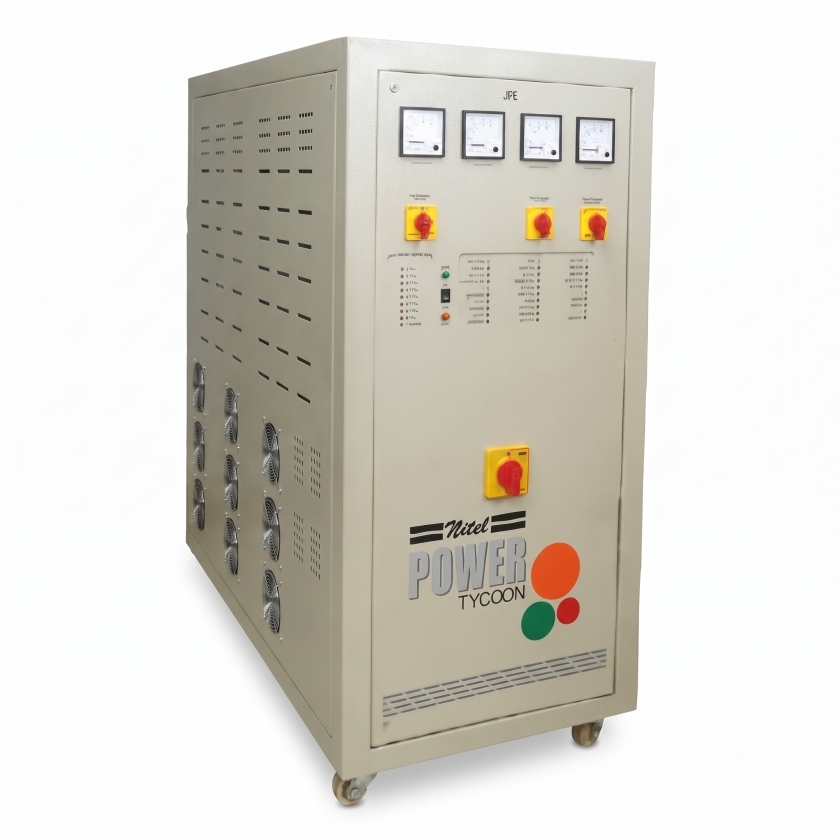

• Application
• Data centers, servers, industrial, medical, telecom

• Capacity
• 0.5 KVA to 40 KVA (Single Phase), 10 KVA to 500 KVA (Three Phase)

• Charging Voltage
• 48V/120V/144V/180V/240V/360V DC (model dependent)

• Components
• Automatic Float Cum Boost Charger, Double edge PWM, VHD Logic

• Current Rating
• Based on KVA output, varies by model

• Display Type
• Other, LED/Panel indicators (based on image and typical UPS design)

• Features
• Automatic voltage regulation, forced air cooling, high efficiency

• Frequency
• Input: 47-53 Hz; Output: 50.0 Hz

• Function
• Online Uninterruptible Power Supply (UPS)

• Input
• 160-270 V AC (Single), 330-470 V AC (Three Phase)

• Operating Temperature
• 0 - 50C

• Output
• 220 / 230 V AC, 50 Hz

• Power Supply
• 160-270 V AC Two Wire; 330-470 V AC Four Wire

• Rated Voltage
• 220 / 230 V AC output

• Usage
• Backup power for critical loads

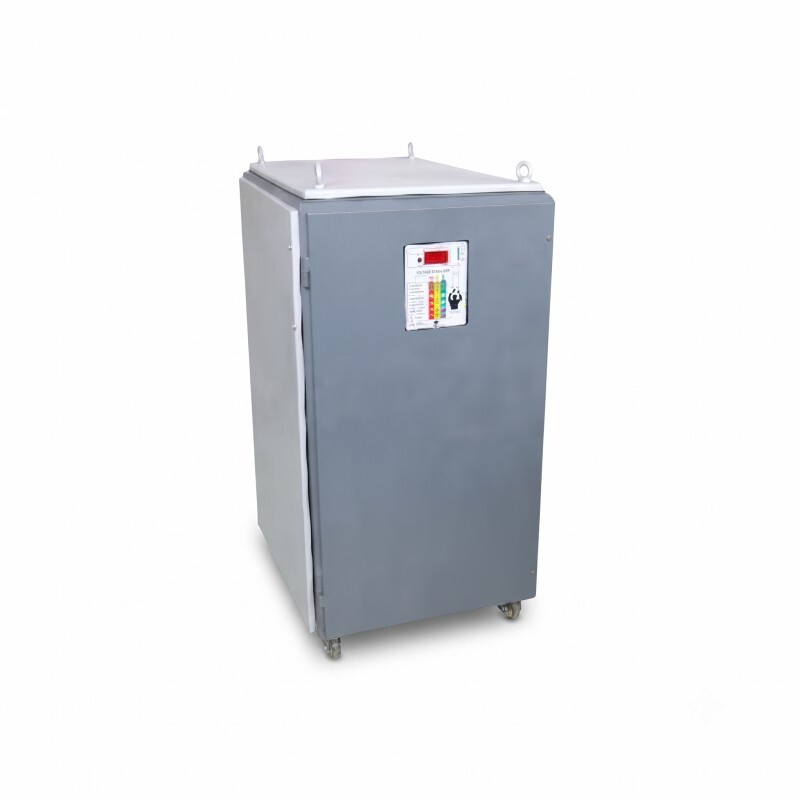

• Capacity
• 1, 2, 3, 4, 5, 7.5, 10, 15 & 20 kVA

• Components
• A.C. Stepper motor

• Display Type
• Other, Digital voltmeter

• Features
• Electronic under/over voltage protection, overload cut off, LED indications, resetting modes

• Frequency
• 47 to 53 Hz

• Input
• 170 V to 207 V

• Output
• 230 V Internally settable to 220 V or 240 V

• Power Supply
• AC

• Resolution
• 1 Volt

• Application
• Indoor

• Features
• Balance type with single phase control; Unbalance type with each phase control circuit and mechanism

• Input
• 360 V to 460 V; 50 C/S; 3 Ph, 4 wire (other range on request)

• Operating Temperature
• 35C above ambient

• Output
• 400 V, 3Ph, 50 C/S; 4 Wire (other range on request)

• Application
• Industrial Voltage Regulation

• Features
• Balance/Unbalance Type Single Phase or Each Phase Control, Overload Protection

• Input
• 9 KV to 12 KV; 50 C/S; 3 Ph, 3 wire

• Operating Temperature
• Up to 35C above ambient

• Output
• 11 kV, 3Ph, 50 C/S; 3 Wire

• Product Type
• HT Industrial Automatic Voltage Regulator

• Usage
• Heavy Industrial

• Application
• Indoor/Outdoor HT voltage correction

• Current Rating
• Suited for HT (high tension) current levels

• Features
• ONAN cooling, 100% duty cycle, uni-directional wheels

• Function
• Voltage stabilization for HT supply

• Input
• 9 KV to 12 KV; 50 C/S; 3 Ph, 3 wire

• Operating Temperature
• 35C above ambient

• Output
• 400 V, 3Ph, 50 C/S; 4 Wire

• Product Type
• Balance/Unbalance AVR (Automatic Voltage Regulator)

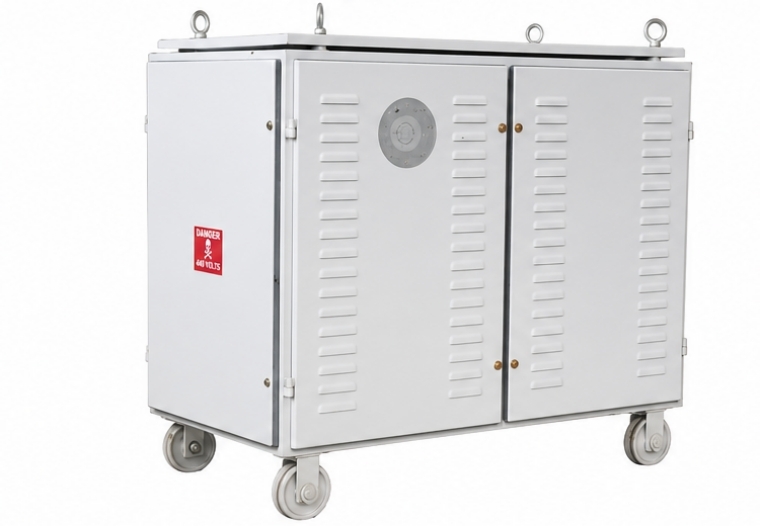

• Application
• Electrical and electronic equipment protection

• Features
• Common mode noise attenuation >100 dB; Coupling capacitance <0.005pF; DC galvanic isolation >1000 M; Dielectric strength 2500V AC for 2 minutes; Load regulation within 3.5%

• Frequency
• 47-53 Hz

• Function
• Step-down, step-up, or 1:1 isolation transformer

• Input
• 115/230VAC 10% (parallel or series windings)

• Output
• 115/230VAC up to 5kVA, 230VAC over 5kVA (parallel or series windings)

• Power Source
• AC supply

• Application
• Battery Charging, DC Power Backup

• Capacity
• Up to 50A

• Charging Voltage
• 48V DC

• Color
• Grey

• Components
• Transformer, Control Panel, Rectifier Module

• Current Rating
• Up to 50 Ampere

• Dimension (L*W*H)
• 350 x 250 x 150 mm

• Display Type
• Other, Analog/LED

• Features
• Overload Protection, Short Circuit Protection, High Efficiency

• Frequency
• 50 Hz

• Function
• DC Rectification and Power Supply

• IP Rating
• IP20

• Input
• 220V AC

• Interface
• Terminal Block

• Operating Temperature
• 0C to 50C

• Output
• 48V DC

• Power Source
• AC Mains

• Power Supply
• AC Powered

• Product Type
• DC Rectifier

• Rated Voltage
• 220V AC Input / 48V DC Output

• Response Time
• Instantaneous

• Size
• Compact

• Supply Voltage
• 220V AC

• Thermal Conductivity
• Standard

• Thickness
• Standard

• Usage
• Telecom, Industrial, Power Plant

• Weight
• Approx 15 kg

• Application
• Industrial Automation, Battery Chargers, Electroplating

• Capacity
• 100A to 1500A (As per model)

• Charging Voltage
• Selectable up to Rated Output

• Color
• Grey

• Components
• IGBT Module, Diodes, Transformer, PCB Controller

• Current Rating
• 100A - 1500A

• Dimension (L*W*H)
• 400 mm x 600 mm x 800 mm

• Display Type
• Other, Digital Meter Display

• Features
• High Efficiency, Compact Design, Overload Protection, Digital Meter, Ease of Installation

• Frequency
• 50 Hz

• Function
• Rectification of AC to DC using IGBT technology

• IP Rating
• IP20

• Input
• AC 3-phase

• Interface
• Terminal Connections, Digital Control Panel

• Operating Temperature
• 0C to 50C

• Output
• DC

• Power Source
• Electrical

• Power Supply
• AC

• Product Type
• IGBT Rectifier

• Rated Voltage
• 230V

• Response Time
• Instantaneous (as per IGBT switching)

• Sensors Specification
• Over temperature, Over load protection

• Size
• Standard

• Supply Voltage
• 415V, 3-phase input

• Thermal Conductivity
• Efficient Heat Sink with Forced Air Cooling

• Thickness
• 12 mm

• Usage
• Industrial applications, Battery charging, Power supplies

• Weight
• 36 kg

• Application
• Residential, Commercial, Industrial installs

• Capacity
• 1 kW to 50 kW (model-specific)

• Color
• Standard Grey

• Components
• Microcontroller, Power Stage, MPPT Controller, Display Unit

• Current Rating
• Depends on model (typically up to 80A DC input)

• Dimension (L*W*H)
• Approx. 430 x 350 x 160 mm (varies by model)

• Display Type
• Other, LCD Digital Display

• Features
• MPPT, LCD Display, Overload Protection, Anti-islanding Protection, High efficiency, WiFi connectivity (optional)

• Frequency
• 50 Hz / 60 Hz

• Function
• Grid Tie Inverter for solar applications

• IP Rating
• IP65

• Input
• DC from solar panels (range varies by model)

• Interface
• RS485, WiFi (optional), Ethernet (optional)

• Operating Temperature
• -25C to +60C

• Output
• AC to grid (synchronized with grid voltage and frequency)

• Power Source
• Solar DC

• Power Supply
• Single Phase / Three Phase (as applicable)

• Product Type
• Solar Grid Tied Inverter

• Rated Voltage
• 230V AC

• Response Time
• < 1 ms

• Sensors Specification
• Built-in voltage and current sensors

• Supply Voltage
• 230V/400V AC (varies by model)

• Usage
• Connects solar panels and feeds power to the grid

• Weight
• Approx. 18 kg to 32 kg (depends on model)

• Application
• Battery backup systems, Inverters, Vehicles, Industrial power supply

• Capacity
• Up to 200Ah (model dependent)

• Charging Voltage
• 13.8V/27.6V/55.2V (depending on model)

• Color
• Black / Grey

• Components
• Metal enclosure, Charging cables, Analog/LED display

• Current Rating
• 10A / 20A (model dependent)

• Dimension (L*W*H)
• Approx. 380 x 250 x 170 mm

• Display Type
• Other, Analog/LED display

• Features
• Overcharge protection, Portable design, Durable metal body

• Frequency
• 50/60 Hz

• Function
• Charging industrial batteries

• IP Rating
• IP20

• Input
• 220-240V AC

• Interface
• Manual control knobs / Switch

• Operating Temperature
• 0C to 40C

• Output
• 12V / 24V / 48V DC (selectable)

• Power Source
• Mains AC

• Power Supply
• AC mains

• Product Type
• Industrial Battery Charger

• Rated Voltage
• 12V / 24V / 48V (varies by model)

• Size
• Medium

• Supply Voltage
• 220-240V AC

• Usage
• Industrial battery charging

• Weight
• Approx. 8-15 kg (model dependent)

• Application
• Power backup for communication towers and remote locations

• Capacity
• Up to 20 kVA

• Charging Voltage
• 48V DC

• Color
• White

• Components
• Solar Charge Controller, Inverter, Battery Bank, Monitoring Unit

• Current Rating
• Variable (depends on model)

• Dimension (L*W*H)
• As Required

• Display Type
• Other, Digital Display (LCD/LED)

• Features
• Automatic changeover, Intelligent energy management, Remote monitoring, Robust design

• Frequency
• 50/60 Hz

• Function
• Hybrid Power Solution for Telecom and Industrial Applications

• IP Rating
• IP54

• Input
• Solar Panel/AC Mains

• Interface
• RS232/RS485, Ethernet

• Operating Temperature
• -20C to 60C

• Output
• DC 48V

• Power Source
• Solar/AC Mains/Battery

• Power Supply
• Solar + Grid + Battery (Hybrid)

• Product Type
• Hybrid Power System

• Rated Voltage
• 220-240V AC

• Sensors Specification
• Voltage, Current, Temperature Monitoring

• Size
• Customized

• Supply Voltage
• 220V AC

• Usage
• Telecommunications, Industrial, Remote Sites

• Weight
• Variable (as per configuration)
